IN RUSH TEST RESULTS

To be considered long life the control must be able to switch the load a minimum of 7,300 times according to the ANSI standard.

NIGHTSWITCH was tested to over 25,000 operation

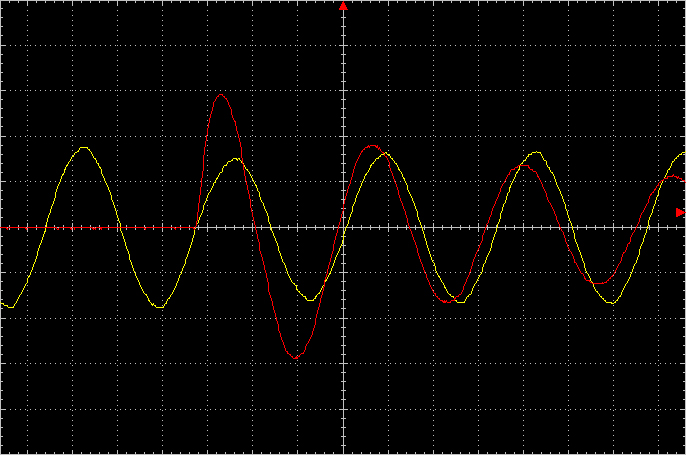

Red Line : Current        Yellow Line: Voltage

NightSwitch uses a zero crossing triac assisted relay circuit to achieve almost unlimited life of relay contacts.

0115-12 (2).jpg

NightSwitch relay contacts after 25,000 operations at rated load. Contacts show almost no wear. (Contacts show very little loss of contact material with no failures to transfer the load)


Non ZVC SunTech Relay Contacts After 5K Operation 1-31-2018.jpg

Competitor’s relay contacts after 5,000 operations at rated load without zero voltage cross feature (contacts welded - dayburner)
